Duties that Motorcycling As soon as Required


Kevin Cameron has been writing about motorcycles for nearly 50 years, first for <em>Cycle magazine</em> and, since 1992, for <em>Cycle World</em>.

Kevin Cameron has been writing about bikes for practically 50 years, first for <em>Cycle journal</em> and, since 1992, for <em>Cycle World</em>. (Robert Martin/)

As soon as upon a time and for a number of months, I rode a pushrod 500 AJS single. A part of its beginning drill was to guarantee that its oil pump had not misplaced prime (It wouldn’t pump if the oil leaked out of it). Take away the cap from the oil tank to disclose the open finish of the oil return line simply inside. Pull the compression launch, then rotate the engine with the kickstart lever till oil may be seen to return to the tank in little blorps. With oil return verified, you could proceed with retarding the spark (to forestall kickback from damaging your leg or the arch of your foot), priming with the “tickler” atop the carburetor’s float bowl, then positioning the crankshaft at simply after prime heart on the facility stroke to provide your leg most time to whirl the 35-pound crank. With a level of abandon, throw your self into the air to come back down confidently on the lever. Visualize success.

The engine ought to begin, however many options existed.

A favourite picture from the Nineteen Sixties exhibits the late Arturo Magni, then head of MV’s roadrace crew, utilizing a camp range to preheat oil earlier than making an attempt to begin one of many crew bikes.

At present now we have multigrade oils which act skinny at cold-starting temperature, but retain adequate viscosity for greatest lubrication as soon as sizzling. However with old-time single-grade racing oil—probably castor-based—the hazard was that its excessive chilly viscosity would stop it from circulating as soon as the engine began, resulting in doable scuffed pistons or valve tappets from lack of immediate oil circulation.

Preheating such single-grade oil decreased its viscosity sufficient to guarantee quick circulation and lubrication of essential elements.

One other picture exhibits the NSU crew within the early to mid-Fifties, utilizing a Luftwaffe-surplus engine heating unit (actually only a moveable hot-air furnace) to preheat the engines of its a number of crew bikes. Massive-diameter flex ducts carried sizzling air from the unit to the a number of bikes, the concept being to heat the elements till consumption tracts have been heat sufficient to vaporize gasoline, type a fuel-air combination, and so begin simply. Systematic.

Trendy bike engines simply begin and run as a result of their digital gasoline injection techniques, having temperature sensors, mechanically alter gasoline supply for variations in air temperature. Flip the important thing and the engine begins. However in Nineteen Sixties bike GP racing, every observe may need its personal official gasoline, which is perhaps av-gas, which evaporates much less simply than pump gasoline. Greatest due to this fact to begin with an engine pre-warmed by sizzling air or sizzling oil.

For a time after the approaching of digital gasoline injection, chilly beginning remained underneath human administration by use of a guide chilly enrichment system often called a choke. It enriched the combination in the identical method as placing the palm of your hand over an open carburetor throughout cranking: Reducing off airflow on this crude means sucked in sufficient additional gasoline to begin (a cold-start combination needs to be enriched as a result of the colder the air, the smaller the fraction of the gasoline it will probably evaporate). For beginning with a choke, you operated the choke lever, began the engine, after which regularly moved the lever because the engine warmed and increasingly of the gasoline delivered to it evaporated. This is the reason engines being cold-started odor of uncooked gasoline: you’re smelling the unevaporated fraction that passes via the engine unburned. And this is the reason the EPA up there in Ann Arbor now needs the exhaust cat as shut as doable to the engine’s exhaust ports—it needs the cat to mild up immediately and burn that unevaporated fraction.

At present a mixture of automated enrichment and a throttle positioner or “variable consumption air leak” permits the gasoline system to each enrich for chilly beginning and to supply an preliminary excessive idle to forestall tough operating or stalling. Because the engine warms, you will notice idle rpm lower because the system returns regularly to regular idle rpm.

A contemporary engine’s spark timing is ready eternally by the connection between a set crankshaft place sensor and a set of poles hooked up to the crank and rotating with it. By understanding crank place, the digital ignition system can fireplace the spark on the time known as out in a number of 3D spark maps carried in reminiscence. X and Y on these maps are the 2 vital variables “N” (engine rpm) and “Alpha,” the throttle angle. “Z,” the peak from that XY aircraft, is the ignition timing in levels earlier than prime useless heart (BTDC). Z is set by operating engines on the dyno and discovering the most effective worth for every mixture of X and Y. That data is saved in everybody’s ECU.

Till the approaching of such digital noncontact techniques, the firing level was decided by a cam, bodily lifting a contact arm such that present flowing between two contacts or “factors” was mechanically reduce off. As a result of put on naturally occurred between the cam and a plastic “rubbing block” that was a part of the contact arm, each thousand miles or so it turned essential to reset the contact hole and the purpose within the cycle at which the cam opened the factors. The proprietor or mechanic set the hole between the open factors utilizing a “feeler gauge” (consisting of many skinny metal leaves, every of a distinct marked thickness). Then the timing of factors opening needed to be reset to the proper spec.

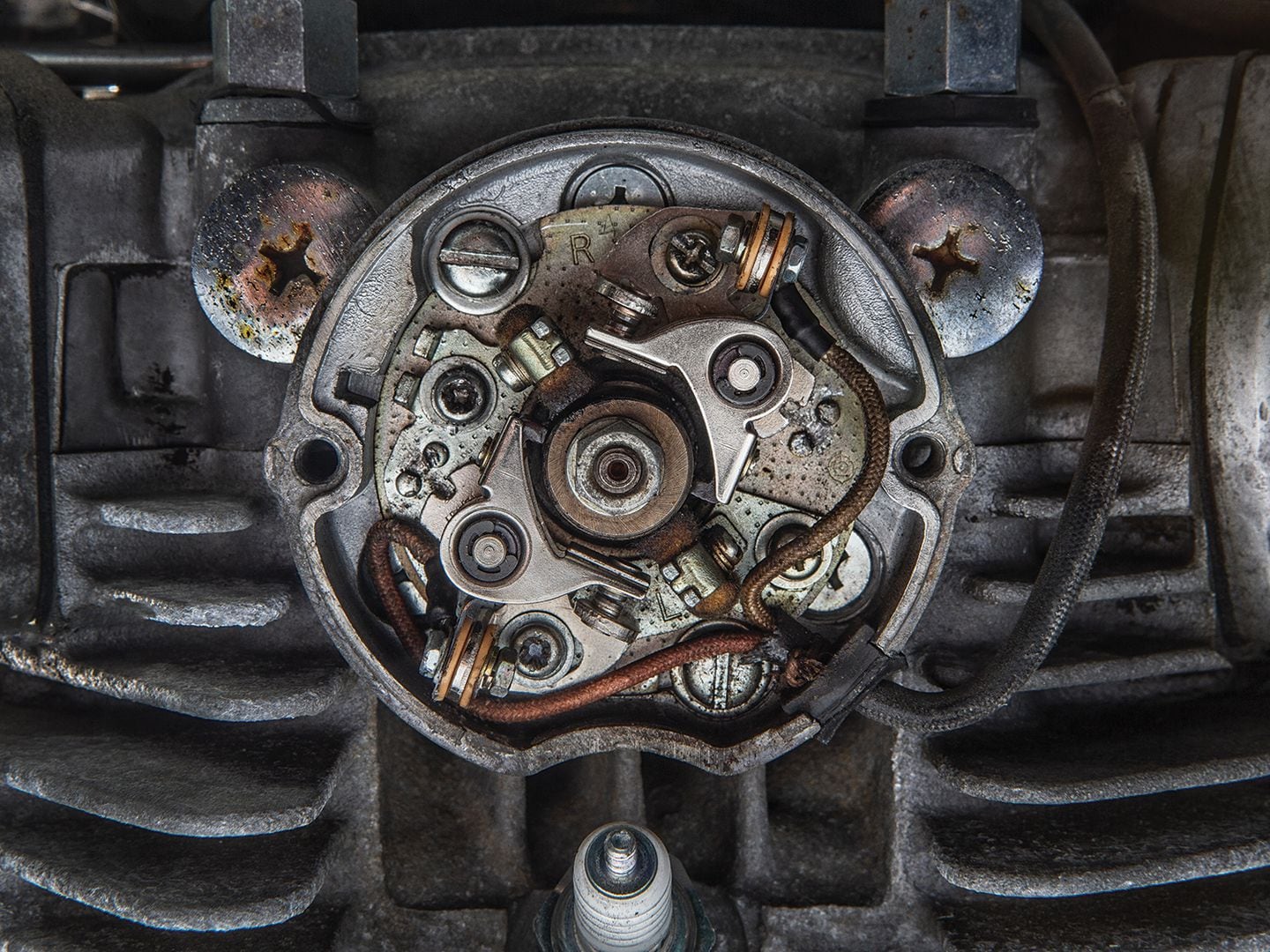

Resetting contact gap on a set of ignition points was a recurring and common occurrence for a motorcycle owner in the days before digital ignitions.

Resetting contact hole on a set of ignition factors was a recurring and customary prevalence for a bike proprietor within the days earlier than digital ignitions. (Jeff Allen /)

In lots of circumstances, the ignition cam was pushed by an “advance mechanism” that used centrifugal weights to permit timing for engine beginning to be retarded sufficient (occurring later within the cycle by a number of levels) to forestall kickback. As soon as began, with the engine accelerating into its energy vary, the centrifugal weights would fly outward towards their little return springs, transferring the cam to a extra superior place appropriate for operation above idle.

One other refinement, extra usually used on automotive engines than on bikes, was “vacuum advance.” The smaller the throttle angle, the much less dense the fuel-air cost turns into (a “partial vacuum”), and the extra slowly it burns. If spark timing have been fastened, the outcome can be later prevalence of peak combustion stress—leading to poor gasoline mileage. Subsequently an consumption vacuum sensor was offered (we used to see these on the edges of auto engine ignition distributors) that might advance ignition timing in response to excessive consumption vacuum.

At present these features are constructed into the spark maps of digital ignition techniques.

One other a part of the 1,000-mile tuneup was inspection and regapping of the spark plugs. The hole between the spark plug’s heart wire and its floor electrode needed to be sufficiently small that the ignition’s power might bounce the hole. Hours of operation, nonetheless, triggered the hole to develop as spark power evaporated metallic from the highly regarded heart wire and floor. If the hole grew giant sufficient, spark blow-out and misfiring resulted.

Throughout the tuneup the plug hole(s) can be measured and reset to specification. Or, if the hole electrodes regarded nicely rounded off, the plug(s) would get replaced with new.

In trendy ignition techniques, hole erosion has been all however eradicated by limiting the present allowed to circulation throughout the plug hole(s), and making the plug’s heart wire of a high-melting-point metallic similar to iridium (spark plug electrodes have been platinum-tipped in  World Struggle II–period giant plane piston engines).

All these adjustments have added as much as the low-maintenance bike engines of the current.

Again when 98 % of motorbike engines have been air-cooled, oil adjustments have been required extra regularly. With air-cooling (and within the absence of a cooling blower) engine temperature goes up and down with the climate. Which means that cold-engine commuting permits combustion merchandise (moisture and acids) to construct up in engine oil, which by no means turns into sizzling sufficient to boil them away. The warmer the climate, the warmer the oil—maybe sizzling sufficient to prematurely degrade the temperature-sensitive components in it. In both case, the “treatment” was extra frequent oil adjustments.

Trendy liquid-cooled engines function at fixed temperature, taking the sharp edges off the issues described within the earlier paragraph. Oil lasts longer.

Much less wrenching = extra time for social media. Progress?
